Film cutting test
Unit: SET
Size:
Price: FOB SHANGHAI
Introduction to the appearance inspection function of film cut parts
Inspection content: Simultaneous inspection of appearance and size; simultaneous inspection of up to 12 cameras/stations: inspection speed up to 30m/min or 700pcs/min;
Tool setting: can detect the specified tool mark and the X- and Y-direction dimensions/distance of the tool mark respectively
Special functions: Blocked hole detection, over/under material detection; each camera can perform one or more different detection contents.
Defect processing: shutdown/online marking/static rejection + replenishment; supports detection of different materials and formula management;
SPC statistics of test results: total number, yield, etc., results can be exported and traceable).
Film cutting appearance inspection configuration and parameters
| Model | LD-MO500/LD-MO600 series (supports 1-12 5 million/12 million CCDs) |
| Screen size | 21 inches |
| CPU model | Core i5-7/10 |
| CPU frequency | 2.5/3.2GHz |
| Memory Capacity | 8G/16G |
| Harddisk | MSATA 500G/1T |
| operating system | Windows 7/10 |
| Rated voltage | 220V |
| Pverall weight | 5kg |
| Camera | Standard 5 million/12 million color camera (supports manual switching between black and white and color) |
| Resolution | 1920*1080 |
| Frame rate | 30 |
| Sensor | 1/2“2/3”CCD |
| Communication method | Using RJ45 Gigabit interface |
Film cutting inspection--measurement
| Standard configuration | Main configuration names and parameters | |||
| Model LD-MQ500 | High-precision measurement module includes numerous one-click tools | Detect the presence of film-cut products, length and width detection, through-hole diameter detection, and product spacing detection | Supports many camera models from 30W to 500W, and can carry two cameras at the same time and run them at the same time | |
| Model LD-MQ510 | High-precision measurement module includes numerous one-click tools | Detect the presence of film-cut products, length and width detection, through-hole diameter detection, and product spacing detection | Support line scan camera | |
Film cutting inspection--measurement + AI inspection
| Standard configuration | Main configuration names and parameters | |||
| Model LD-MQ600 | High-precision measurement + AI3.0 deep learning dual module | Film cutting product position, measurement and AI detection, such as product length and width, through hole diameter, more glue or less glue, deformation or dirt can be quickly detected | Supports many camera models from 500W to 2500W, and can carry two cameras at the same time and run them at the same time | |
| Model LD-MQ610 | High-precision measurement + AI3.0 deep learning dual module | Film cutting product position, measurement and AI detection, such as product length and width, through hole diameter, more glue or less glue, deformation or dirt can be quickly detected | Support line scan camera | |
Film cutting inspection--measurement + AI detection + motion removal positioning
| Standard configuration | Main configuration names and parameters | |||
| Model LD-MQ700 | High-precision measurement + AI3.0 deep learning dual module + motion removal positioning | The position, measurement and AI detection of film-cut products, such as the length and width of the product, the diameter of the through hole, more glue and less glue, deformation or dirt, can be quickly detected; if NG products are found during the inspection, the material can be completed without stopping the machine. | Supports many camera models from 500W to 2500W, and can carry two cameras at the same time and run them at the same time; Support multiple brands of robots | |
| Model LD-MQ710 | High-precision measurement + AI3.0 deep learning dual module + motion removal positioning | The position, measurement and AI detection of film-cut products, such as the length and width of the product, the diameter of the through hole, more glue and less glue, deformation or dirt, can be quickly detected; if NG products are found during the inspection, the material can be completed without stopping the machine. | Support line scan camera; Support multiple brands of robots | |

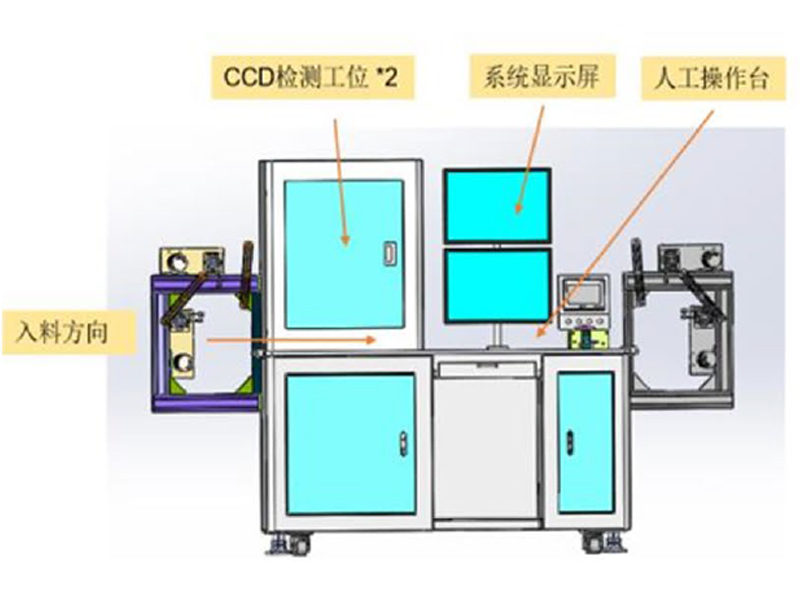

Appearance inspection of die-cut parts
Supports sheet and roll material inspection and formula management; up to 12 cameras/workstation can be inspected at the same time; the inspection speed can reach up to 25/min; supports SPC statistics of inspection results, and the results can be exported; inspection content: simultaneous inspection of appearance and size; Defect treatment: shutdown/static removal + replenishing; equipment size: 3300*1800*2000mm
