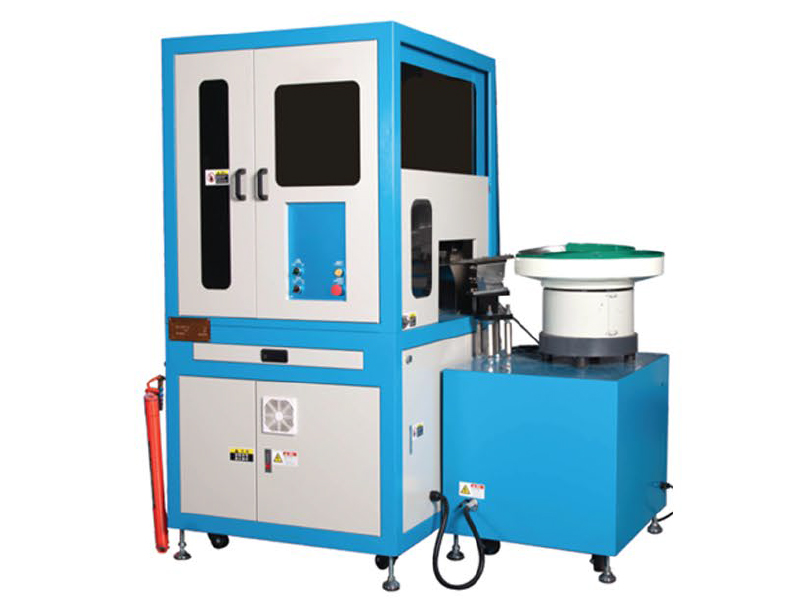

Glass disc optical screening machine
Unit: SET
Size:
Price: FOB SHANGHAI
Screening machine configuration and parameters:
| model | LD-1300/LD-2300/LD-1700/LD-2700 (supports 2-8 1.3 million/5 million CCDs) |
| screen size | 21 inches |
| CPU model | Core i5-7/10 |
| CPU frequency | 2.5/3.2GHz |
| Memory Capacity | 8G/16G |
| harddisk | MSATA 500G/1T |
| operating system | Windows 7/10 |
| Rated voltage | 220V |
| overall weight | 5kg |
| camera | Standard 1.3 million/5 million color camera (supports manual switching between black and white and color) |
| resolution | 1920*1080 |
| Frame rate | 30 |
| sensor | 1/2”2/3”CCD |
| communication method | Using RJ45 Gigabit interface |
Features:
| Equipment process | Equipment function | Equipment principle | Device functions |
| Automatic feeding | 1. Product 2D or 3D size measurement 2. Product appearance defect detection; 3. Save testing personnel; 4. Improve detection efficiency; 5. Ensure the accuracy and stability of test results; 6. Achieve efficient and complete inspection of products. | 1. Apply high-speed dynamic imaging control technology to capture images; 2. Use multi-spectral synthesis and multiple-exposure optical technology to highlight measurement or defect characteristics; 3. Use sub-pixel algorithms to improve image processing and measurement accuracy; 4. Combine traditional Blob image processing algorithms and deep learning AI algorithms to deal with complex defect detection problems. | 1. Automatic feeding; 2. Automatically adjust the consistent posture; 3. Automatic measurement and detection; 4. Automatically classify and cut materials; 5. Statistically analyze the measurement results and generate reports; 6. Can be connected with MES. |
| Plastic positioning | |||
| Detection and measurement | |||
| Classification blanking |
Intelligent visual screening machine-hardware inspection machine:
| Standard configuration | Main configuration names and parameters | |||
| Model FPLS1100 | High-precision measurement module includes numerous one-click tools | Metal parts detection, distance detection, width detection, angle detection, diameter radius detection, such as screw diameter, concentricity detection or thread tooth height and tooth pitch detection | Supports many camera models from 30W to 500W, and can carry two cameras at the same time and run them at the same time | |
| Model FPLS1200 | High-precision measurement + AI3.0 deep learning dual module | Metal parts position, measurement and AI detection, such as product diameter, bumps, dents or poor processing can be quickly detected | Supports many camera models from 30W to 2500W, and can carry four cameras to run at the same time | |
Intelligent visual screening machine-powder metallurgy inspection machine:
| Standard configuration | Main configuration names and parameters | |||
| Model YJ2100 | High-precision measurement module includes numerous one-click tools | Powder metallurgy parts no detection, distance detection, width detection, angle detection, diameter radius detection, point detection | Supports many camera models from 30W to 500W, and can carry two cameras at the same time and run them at the same time | |
| Model YJ2200 | High-precision measurement + AI3.0 deep learning dual module | Position, measurement and AI detection of powder metallurgy parts, such as product length, width, diameter, chipping or bruises can be quickly detected | Supports many camera models from 30W to 2500W, and can carry four cameras to run at the same time | |
Intelligent visual screening machine-injection molding inspection machine:
| Standard configuration | Main configuration names and parameters | |||
| Model ZS3100 | High-precision measurement module includes numerous one-click tools | Injection molded parts presence detection, distance detection, width detection, angle detection, diameter radius detection, point detection | Supports many camera models from 30W to 500W, and can carry two cameras at the same time and run them at the same time | |
| Model ZS3200 | High-precision measurement + AI3.0 deep learning dual module | Detect the position, measurement and AI detection of injection molded parts. For example, the length, width, diameter, burrs or uneven injection molding of the product can be quickly detected. | Supports many camera models from 30W to 2500W, and can carry four cameras to run at the same time | |
